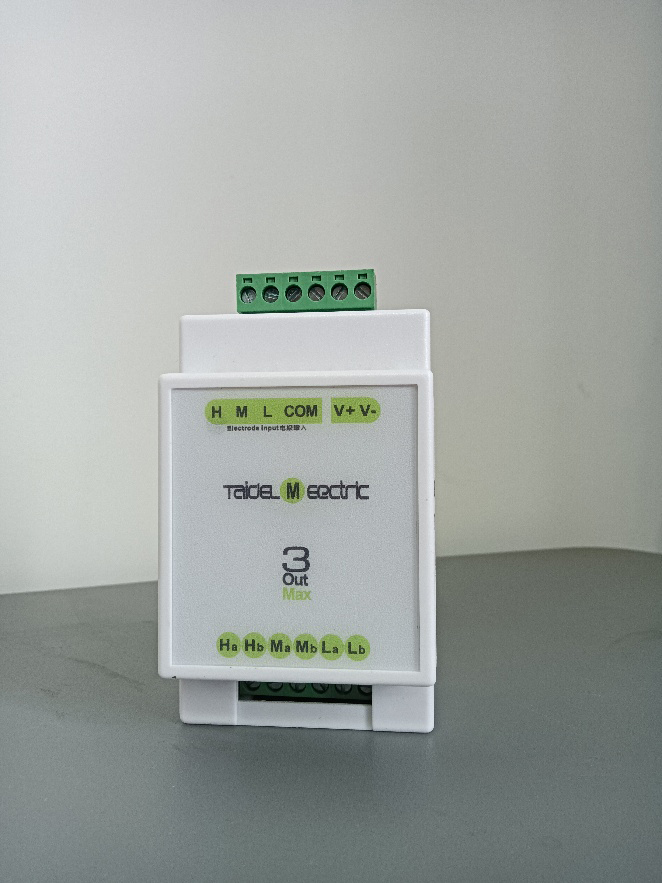

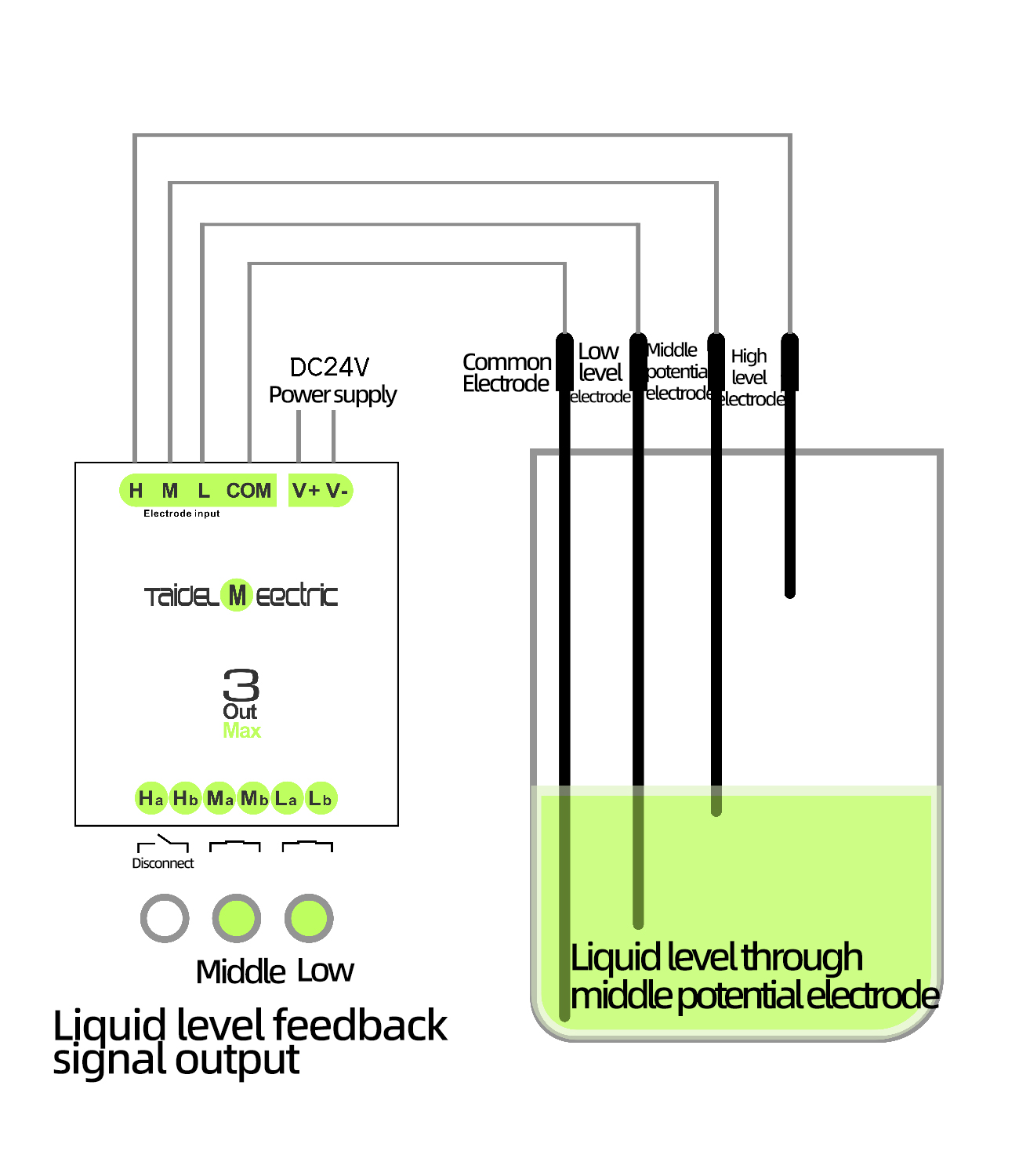

The controller has the function of detecting and transmitting the water level electrode signal, and can convert the water level electrode signal into a switch signal.
SMD chip technology Dedicated measurement electrode MCU Accurate and fast.
The surface of the circuit board is made of three anti-paint layers, which are waterproof, moisture-proof and anti-corrosion. Standard industrial grade products.
Our products use DC5V low-voltage electrode detection, which is safer than AC12V or DC12V voltage detection on the market. The detection distance is more sensitive and the electrode life is longer.
Alternate pulse detection algorithm is adopted, the detection distance sensitivity is higher, the adsorption of impurities in water to the electrode is reduced, and the service life is longer.

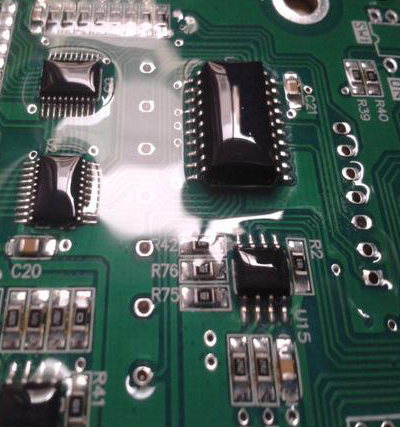

Effect drawing of three anti-paint, waterproof, moisture-proof and waterproof.

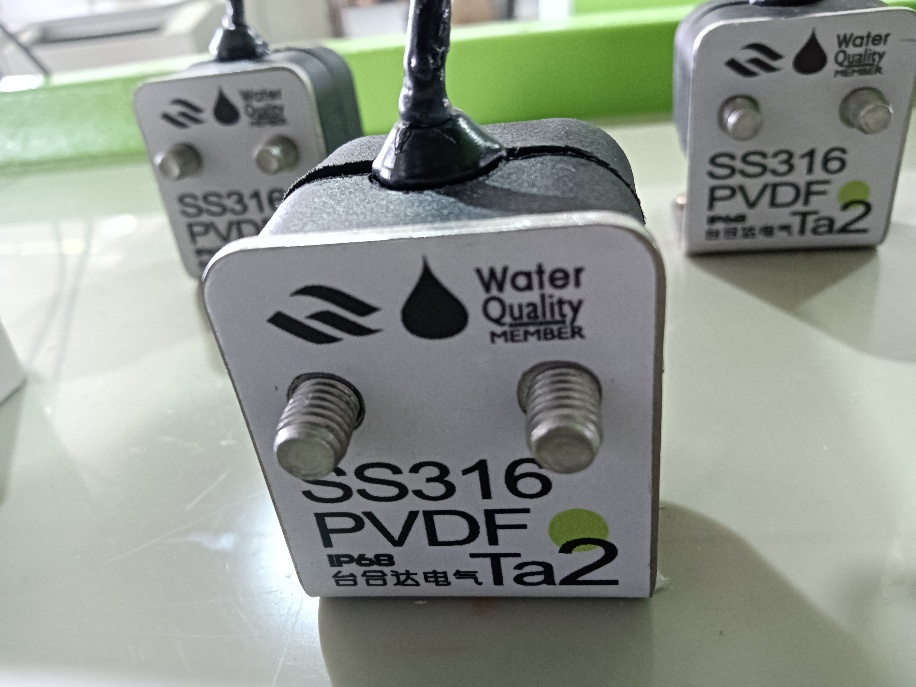

Electrode parameters
Electrode Length: 0-2000mm (Customers can customize according to their needs)
Electrode material: Pure titanium
Fixed way: M4 screw or self-tapping screw installation
Strip length: Single electrode 1.0 square * 5 meters (customer can be customized according to demand)
Waterproof material: PVDF
waterproof level: IP68

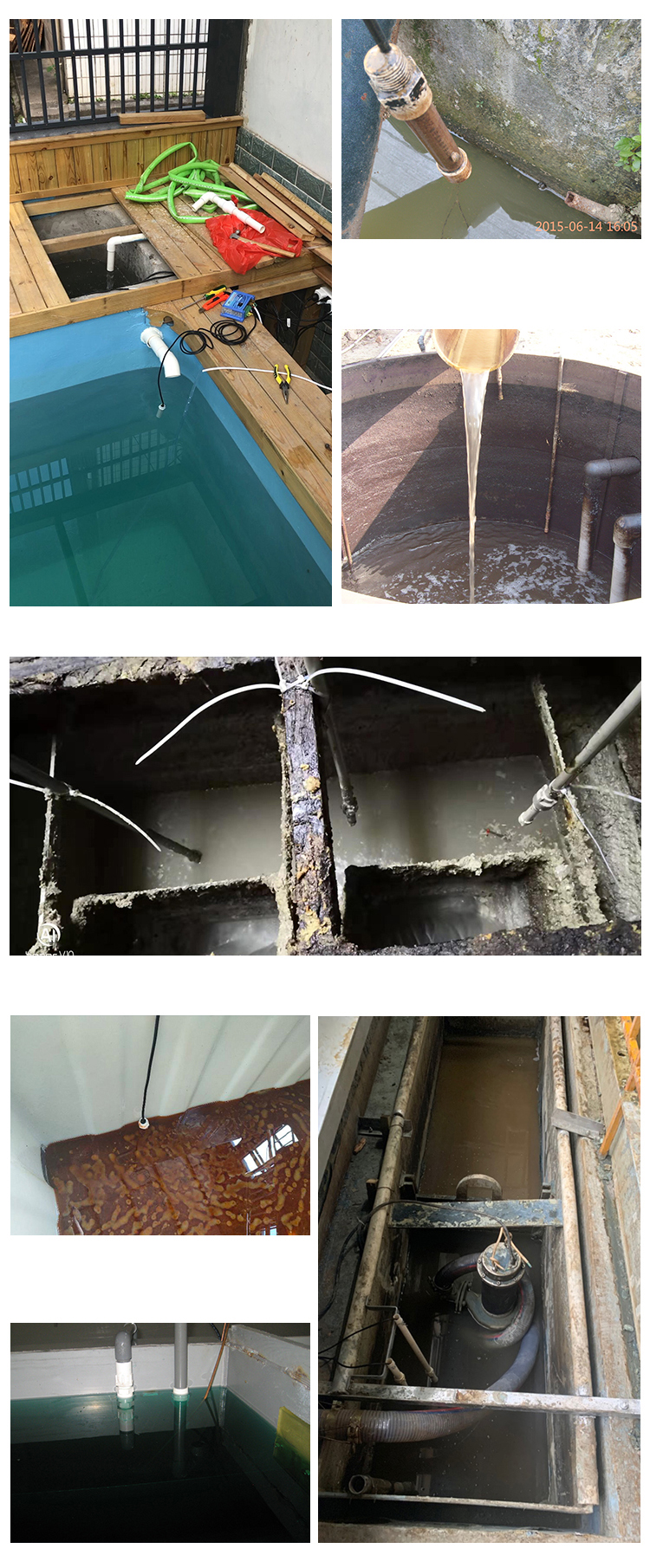

Farmland irrigation and drainage
Used in small farms
For use in large sewage tanks
Used in the kitchen grease pool
Used in wastewater cesspools
Use in acidic pools
Automatic drainage of sump
