Stainless steel sewage grinder cutting pump

Short Description:

●Water pump full precision casting shell

●With high chromium alloy cutting device, it can quickly crush the medium

●The motor adopts high-temperature wire, F-class insulation grade, high temperature resistance ≤103℃

●All rotor shafts are connected by friction welding stainless steel

●Standard 8m cable

Send email to us

Product Detail

Product Tags

Product overview

The WQ(D)-SQG pump series produced by our company has an innovative hydraulic design, which ensures efficient, reliable and trouble-free working status of the pump during long-term operation.
WQ(D)-SQG pump series saves product life cycle cost from two aspects.
On the one hand, the power consumption is greatly reduced during operation, and the maximum reduction of power consumption can reach 50%. On the other hand, maintenance is less or maintenance-free during operation, because:
WQ(D)-SQG pump series can maintain efficient operation even in media containing a lot of particles and fibers
WQ(D)-SQG pump series has excellent non-clogging characteristics, eliminating the risk of clogging.

Product Usage

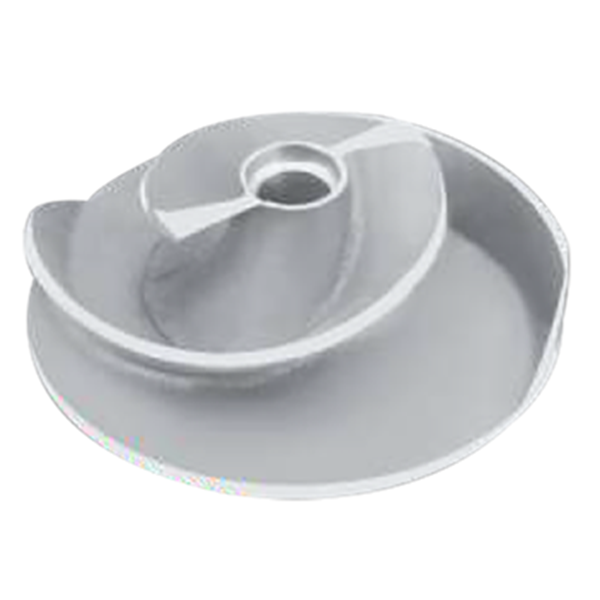

1. This water pump has the advantages of novel design, beautiful appearance, high efficiency, and energy saving. The impeller is designed with a semi-open rotary cutting method. It has an ideal effect on crushing debris in general sewage such as plastic bags and cloth strips, and the water pump is not easy to block. .

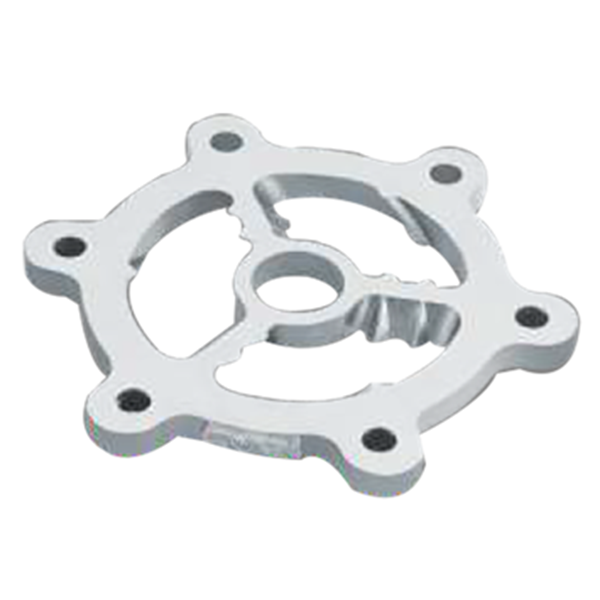

2. The pump impeller and cutter head are made of 3Cr13 material and have been heat-treated to increase their wear resistance, which is not easy to wear and rust and increase the service life of the pump.
3. This pump is specially designed for the discharge of industrial and agricultural sewage with sediment (farm, hotel sewage, sewage pit, septic tank, biogas digester, etc.), and has made a significant contribution to the sewage treatment field of municipal engineering .

Stainless steel sewage grinder cutting pump (3)

Stainless steel sewage grinder cutting pump (4)

Conditions of Use

1. The conveying liquid cannot cause obvious corrosion to the 304 or 316 material (please consult for special liquid);
2. Transmission medium temperature: 0-60°C;
3. Based on the center of the impeller, the diving depth cannot exceed 5 meters;
4. The pH value of the conveying medium is 304 (4-10), 316 (4-13);
5. The kinematic viscosity of the conveying medium is 7X10^‐7~23X10^-6‐㎡/s.
